METAL DETECTOR FOR BELTS OF 1000mm | AE2-6049

Supply voltage: 230VAC +10% -15% / 50/60 HZ.
Power: 20 VA.
Working temperature: From 0 up to 40 ºC.
Sensitivity: Tuerca M18 hierro, 100mm.
Degree of protection of the coil and cabinet: IP65.
Minimum detection speed: 0,5 m/sg a 2,5 m/sg.
Contacto Alarma1: N.C. 5 A/230VAC Libre de Potencia.
Contacto Alarma2: N.C. 5 A/230VAC Libre de Potencial.
Control cabinet dimensions: 200 X 250 X 150.
Maximum distance from the coil to the cabinet: 100 m.
Download more info

INQUIRY
SKU: AE203509345 Category:

Description

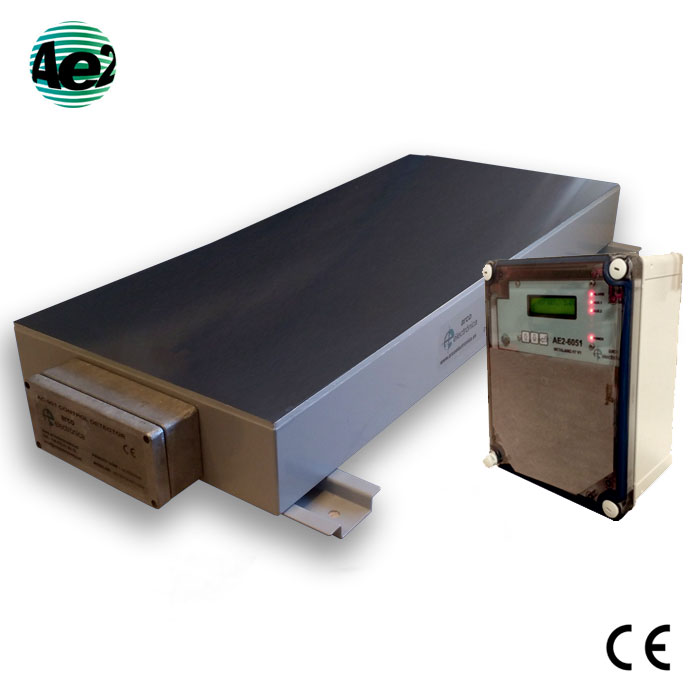

Metal detector with 1000 mm detection coil.
The metal detector on conveyor belt is prepared for the detection of metal elements in the raw material while it is transported. The system warns of the passage of any unwanted metal element, avoiding damage to the machinery, the process or stops in production.

The control panel of the metal detector has a visual alarm, power and reset indicator. It also has a remote reset and 2 alarm outputs (potential-free switched contact).

The sensitivity of the detector can be adjusted by means of the control located in the detection coil of the equipment, simplifying its installation and adjustment. Alarm disconnection, start operation from reset in control cabinet, or remote reset. Cancellation of start alarm by electrical maneuver.

Additional information

Weight 38 kg
